PRODUCTS Detail



price snack granule vertical packaging machine


Product Description

JT-420W320W

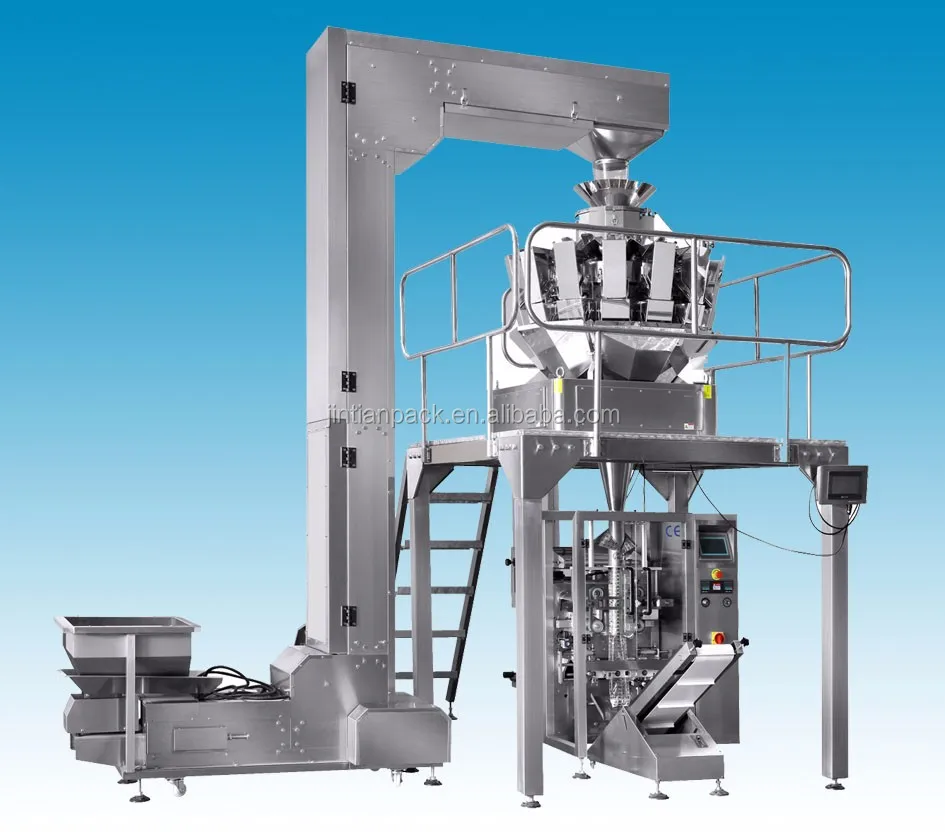

Automatic packing machine  JT-420W including:

JT-420 packing machine

JT-10 Multihead weigher

JT-130 Finished products conveyer

JT-350 Z-shaped elevator

JT-2-2 Platform



Automatic packing machine JT-420W---Application:

  Suitable for many kinds of products ; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc. which shape is roll, slice and granule.



Automatic packaging machine JT-420W--- Specification



JT-420 Automatic vertical packing machine

1



2





Technical characteristics:

1. It is controlled by a micro computer,just touching the screen,and the operation is simple .

2. PLC computer system , function is more stable and don’t need to stop machine.

3. Temperature independent control system ,precision degree can get to±1°C.

4. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.

5. Packing type diversification , pillow sealing, standing type ,punching etc.

6. Bag–making , sealing, packing, print date in one operation.



Technical parameters

Type

JT-420

Bag length

50-300mm(L)

Bag width

50-200mm(W)

Max width of roll film

420mm

Packing speed

5-60bags/min

Measuring range

150-1200ml

Air consumption

0.65mpa

Gas consumption

0.3m³/min

Power voltage

220VAC/50Hz

Power

2.2KW

Dimension

(L)1080mm*(W)1300mm*(H)1400mm

Deadwight of machine

600kg



JT-10 Multihead weigher (Automatic packing machine)

Technical characteristics:

1.High precision data-type weighing sensor realizes precise weighing.

2.IP65 grade water-proof and dust-proof design. It’s clear with all stainless steel parts. Full sealed design prevents accumulation of material.

3.It can fine the opening and closing speed of hopper door according to the feather of items to be weighted.

4.With powerful digital automatic counting function.



Technical parameters:

Type

JT-10

Measure number

10

Range of single weighing

10-1000g

Quantity precision

0.1-1.5g

Average tolerance of single bag

0.2-0.7g

Weighing speed

50-100bags/min

Hopper capacity

1300ml

Hopper type

Double hoppers without memory

Preliminary programs

99kinds

Net/gross

300/370Kg

Overall size

(L)1680×(W)1210×(H)1140mm



 2



1

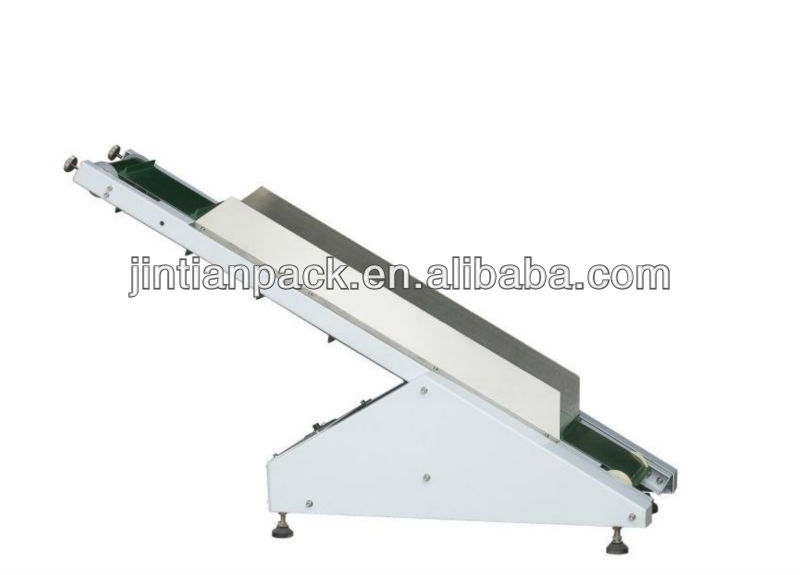

JT-130 Finished products conveyer

JT-130 finished products elevator

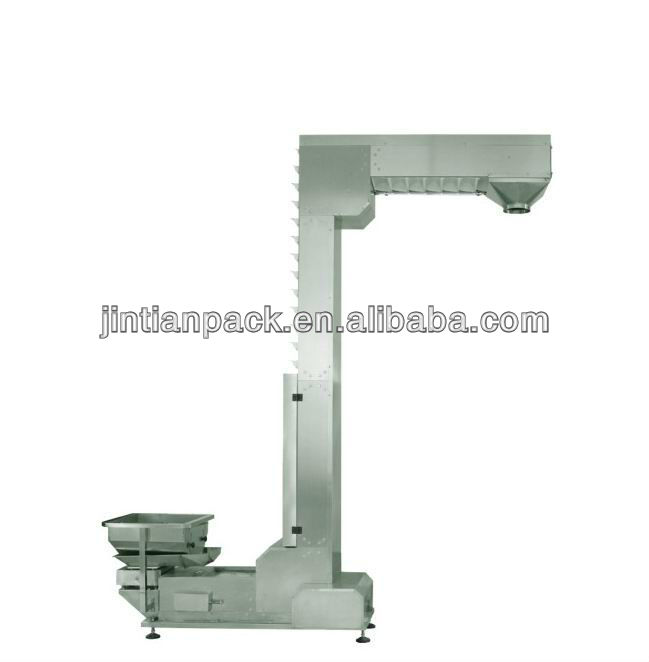

JT-350 Z-shaped automatic material elevator

JT-350 Z shape automatic material elevator

Technical parameters:

Model

JT-130

JT-350

Convey speed

800mm

3750mm

Power

40W

750W

Convey Measure

200mm/min

4T/H(Rice)

Overall size

1300(L)×430(W)×890(H)mm

3000(L)×650(W)×3750(H)mm



 1



1



JT-2-2 Platform

Technical parameters:

Model

JT-2-2 Platform

Maximum Loading Weight

2T-3T

Equipment Size

2000mm*2000mm*2000mm

Net Weight

350kg



 1



Packaging size:

Name

G/N

Packaging size

Total

JT-420 packing machine

660kg   600kg

(L) 1600mm * (W) 1250mm * (H) 1600mm

3.2CBM

JT-10 multihead weigher

300kg   220kg

(L)1240mm×(W)1180mm×(H)1460mm

2.2CBM

JT-130 conveyor

100kg   80kg

(L)1730mm×(W)580mm×(H)760mm

0.76CBM

JT-350 elevator

300kg   250kg

(L)2060mm×(W)1060mm×(H)1050mm

2.3CBM

JT-2-2 platform

330kg   280kg

(L)2060mm×(W)1910mm×(H)500mm

2.0CBM





2

(2)_05

(2)_09





Warranty

All our packing machine has 1 year warranty!

To customers

Normally we have some questions to customers:

1. What is your packing product?

2. How many grams per bag?

3. What is your bag size(the width and length)?

4. What is voltage and Hertz in your local?

If you want to design the special packing machine, we can manufacture the packing machine as your requirements.
