JT-420W CE approved multihead weighing candy packing machine



420W 320W.jpg

Product Description

 Technical Charateristic:

  1. CE certification.
  2. Automatic multi head weigher and vertical packing combine in one unit(2 in 1 technology).
  3. PLC control, man-machine interface, easy to operate.
  4. Servo motor drawing film,double belt, faster and more stable. Optical tracking devices to keep accurate.
  5. Separate circuit boxes for pneumatic control and power control. Noise is low.
  6. The heat transfer printer & automatic film correction motor, are for the optional.

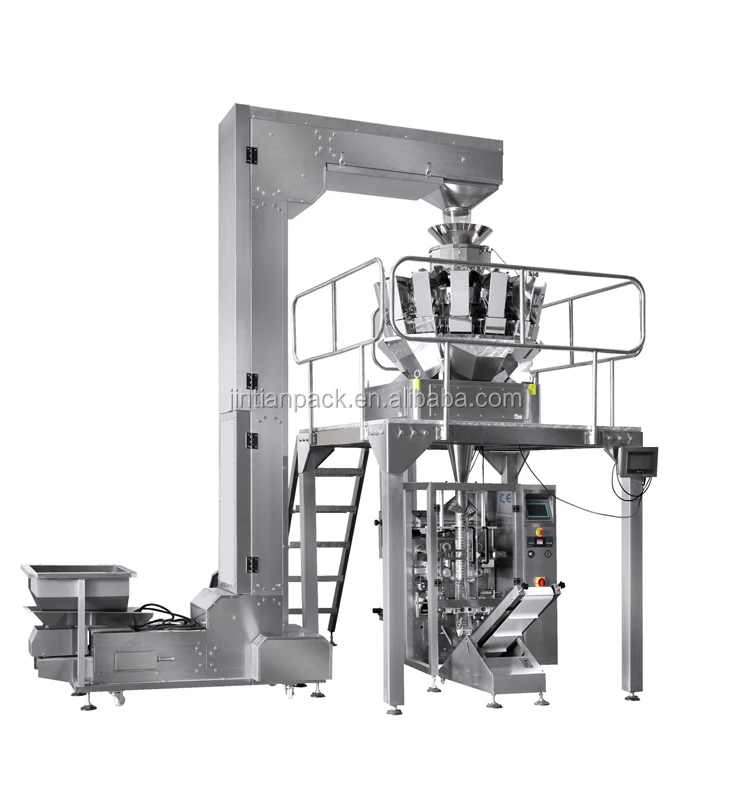

Combined Parts:

  • Automatic Z-type bucket elevator
  • 10/14 multihead weigher
  • Vertical Packing Machine







Automatic Z-type bucket elevator:

Z elevator.jpg







10/14 multihead weigher:




Weighing range 10-3000 g
Accuracy X(0.5)
Max Seed 50-120 P/M
Hopper Volume 1.6 L/2.5 L/ 5 L
Control Panel 7 inch touch screen
Options Dimple Plate/ Timing Hopper/ Printer/ Rject Device
Driving System Step Motor
Power requirement 220V/1000 W-1500 W 50/60HZ 10A/12A
Packing dimension

1620(L)* 1100(W)*1100(H) mm

1700(L)*1100(W)*1265(H) mm

1950(L)* 1280(W)*1690(H) mm

2195(L)*1380(W)*1810(H) mm

Weight 380kg/490kg/600kg/650kg









Vertical packing machine:

420VF main parts.jpg



Bag length 50-200 mm
Bag width 40-150 mm
Max. width of roll film 320 mm
Packing speed 10-100 bags/min
Air consumption 0.65 mpa
Gas csumption 0.3 cubic mether/min
Power voltage 220 VAC/50/60 Hz
Power 2 KW
Dimension 1200(L)* 700(W)* 1520(H) mm
Weight 400 kg
Type of sealing Pillow bag or three-side sealing
Packing material OPP/CPP, OPP/CE, PET/PE

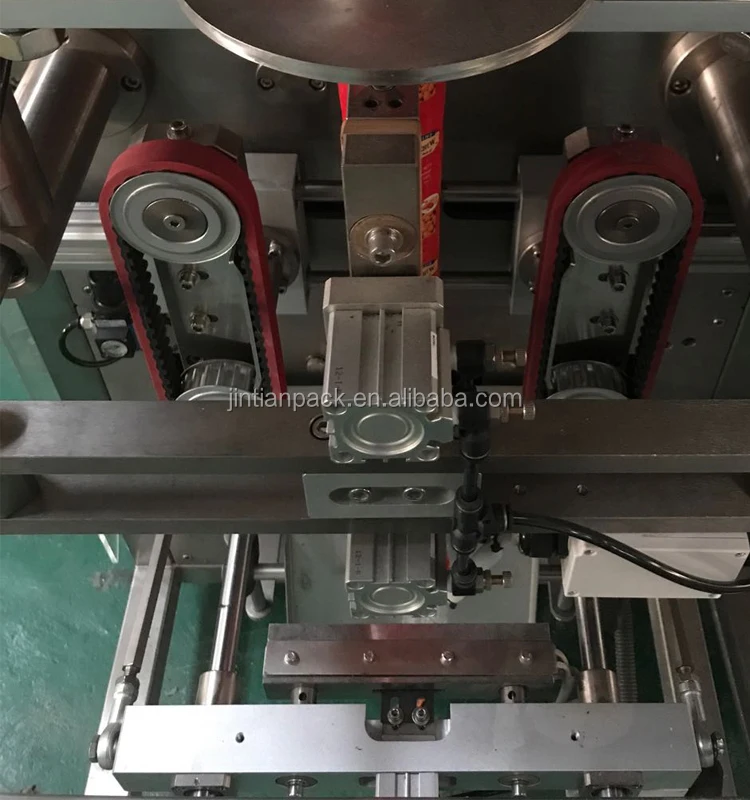

Double belt, drawing film, air cylinder for bag vertical and cutter seal, work faster and more stable

420VF holder.jpg

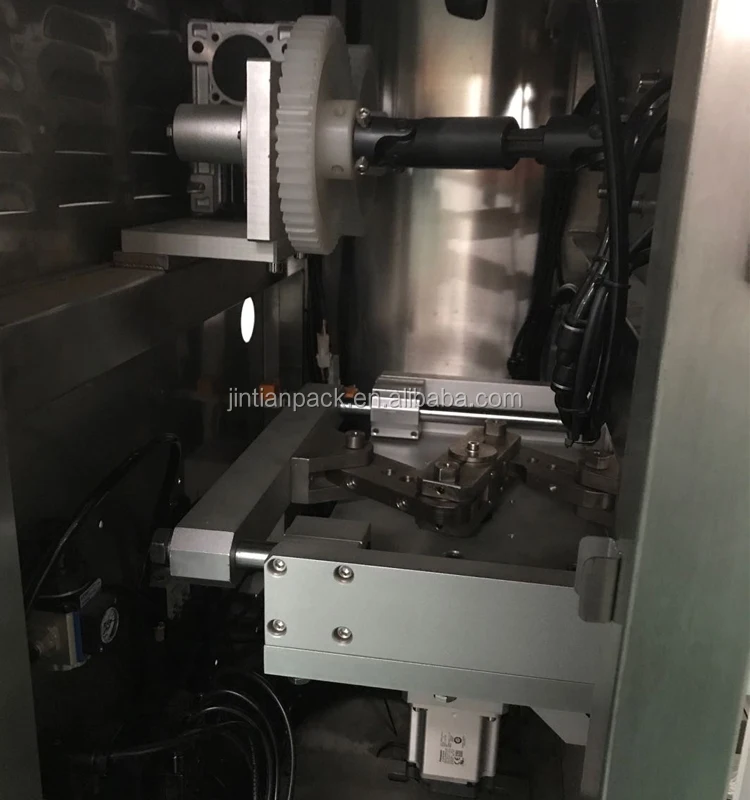

Servo motor pulling film, air cylinder for bag horizontal seal, work faster and more stable

420vf servo motor driven.jpg









Electricity box, Mitsubishi PLC, Panasonic servo motor, Simens frequency changer, all the spare parts are international brand. Separate electricity road.

420VF electricity box.jpg









Application:

Suitable for pack many granule products with plastic bag, such as cashew, nut, seeds, peanut, candy, shrimp roll, popcorn, cornmeal, dried fruit.

 candy sample.jpg





()_05

Packaging & Shipping

 (2)_07



Company Information

 (2)_05

(2)_09(2)_08

hot sale item

 (2)_10



FAQ



1. What kinds of bag style you can make?

This mdoel, we can make the bags with different shape holes, also continule bags.

2. Are you factory or trading company?

We are the factory, we doing this line for more than 5  years.

3. What's your payment way?

T/T by our bank account directly, or by alibaba trade assurance service, or by West Union, or in cash.

4. How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in the third party inspection organization .

5. We are afraid you won't send us the machine after we send you the money?

Please note our above business license and certificate. And if you don't trust us, then we can use alibaba trade assurance service or payment by LC, guarantee your money.

6. Why we should choose your company?

Our products are with famous brand in PLC, frequency, servo motor and other electric parts, also the reasonable price.
