  Hot sale fully automatic small Dried fruit packaging machine



Product Description



Small fruit packaging machine including

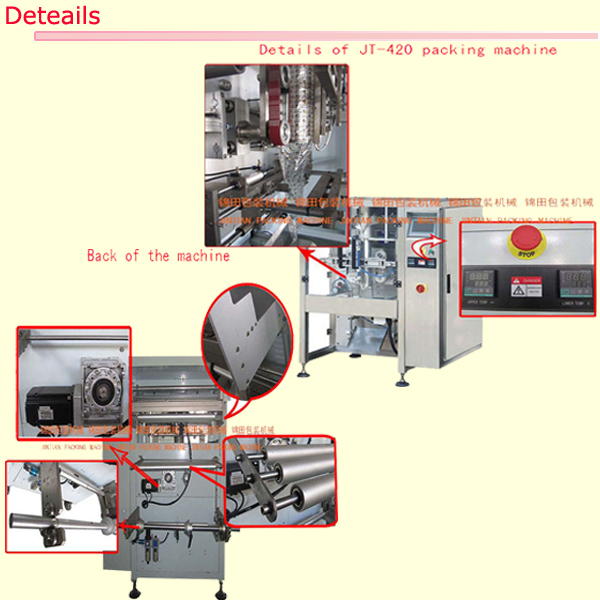

JT-420 packing machine

JT-10 Multihead weigher

JT-130 Finished products conveyer

JT-350 Z-shaped elevator

JT-2-2 Platform



Small fruit packaging machine--Application:

Suitable for many kinds of products ; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc. which shape is roll, slice and granule.

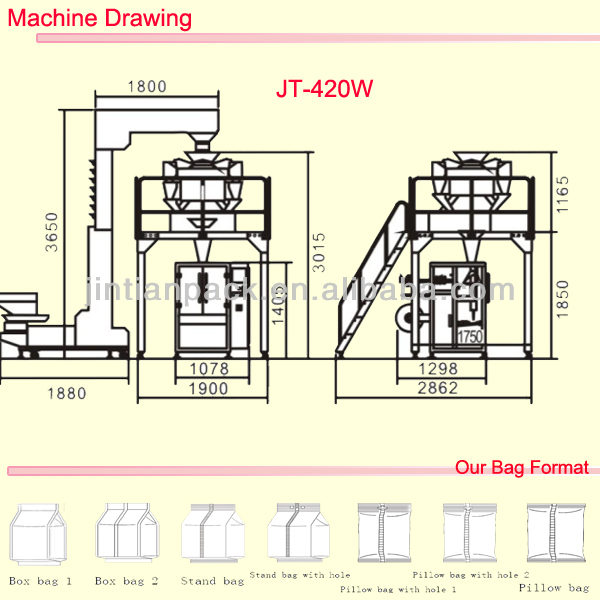

 Pouch packing machine  JT-420W--- Specification

Technical characteristics:

1. It is controlled by a micro computer,just touching the screen,and the operation is simple .

2. PLC computer system , function is more stable and don’t need to stop machine.

3. Temperature independent control system ,precision degree can get to±1°C.

4. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.

5. Packing type diversification , pillow sealing, standing type ,punching etc.

6. Bag–making , sealing, packing, print date in one operation.



Technical parameters

Type

JT-420

Bag length

50-300mm(L)

Bag width

50-200mm(W)

Max width of roll film

420mm

Packing speed

5-60bags/min

Measuring range

150-1200ml

Air consumption

0.65mpa

Gas consumption

0.3m³/min

Power voltage

220VAC/50Hz

Power

2.2KW

Dimension

(L)1080mm*(W)1300mm*(H)1400mm

Deadwight of machine

600kg



JT-10 Multihead weigher ( Small fruit packaging machine )

Technical characteristics:

1.High precision data-type weighing senso

r realizes precise weighing.

2.IP65 grade water-proof and dust-proof design. It’s clear with all stainless steel parts. Full sealed design prevents accumulation of material.

3.It can fine the opening and closing speed of hopper door according to the feather of items to be weighted.

4.With powerful digital automatic counting function.

JT-130 Finished products conveyer

JT-350 Z-shaped automatic material elevator

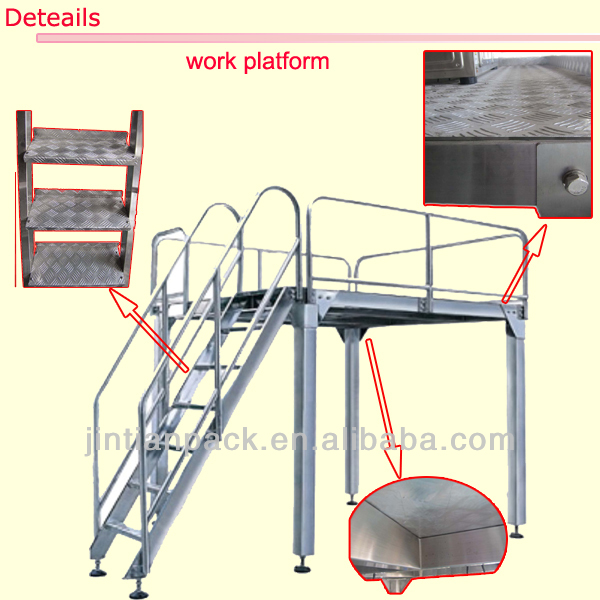

JT-2-2 Platform

Technical parameters:

Model

JT-2-2 Platform

Maximum Loading Weight

2T-3T

Equipment Size

2000mm*2000mm*2000mm

Net Weight

350kg



Packaging & Shipping



Company Information











to customers

Normally we have some questions to customers:

1. What is your packing product?

2. How many grams per bag?

3. What is your bag size(the width and length)?

4. What is voltage and Hertz in your local?

If you want to design the special packing machine, we can manufacture the packing machine as your requirements.
